Product material: PA6 nylon, polyamide
Working temperature:-40℃ to+125℃, instantaneously can be +140℃
Certification: RoHS, CE, Product Quality Certificate of Railway Ministry.-40C Low Temperature text Report

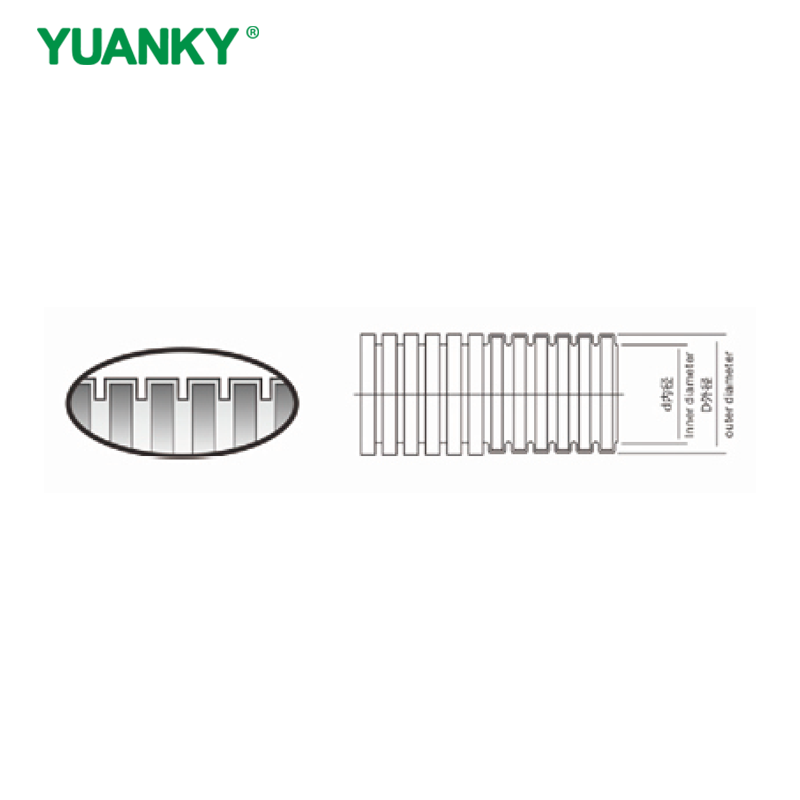

Structure: Corrugated both inner & outer
Flame Retardant Rating: FV-O
Color: Orange. Other colors are customizable upon requirements (split available)
Property: Well flexbility, distortion-resistant, good bending performance, strong bearing capacity, resistance against acid, lubricating oil, cooling fluid, glossy surface, friction resistance
Bearing capacity: Non-cracking or deformation at feet pressure, recover quickly without damage.
Application: Widely applied in the industries like robots & automation, new energy automobile, aviation, train & metro, raiway traffic equipment, marine vessel, electrical power generation chemical industry, mechanical arms & equipment, illuminating equipment and electrical insulating protection, etc. Adaptive for both dynamic & static environment, especially with requirement of flame retardant
How to use: Insert the wires or cables into the conduit and match with the suited connectors such as HW-SM-G, SM or SM-F series
