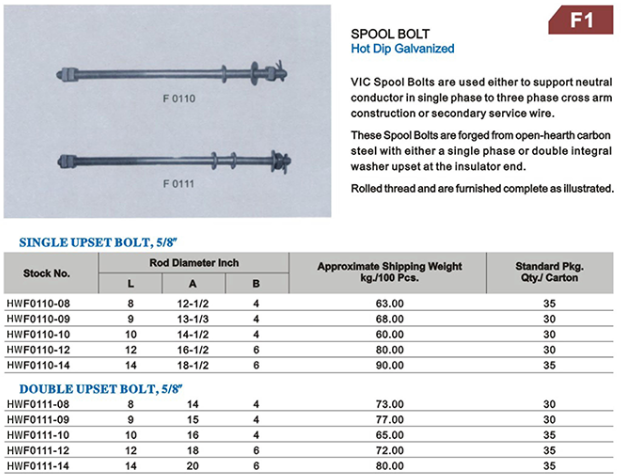

SPOOL BOLT

Hot Dip Galvanized

VIC Spool Bolts are used either to support neutral conductor in single phase to three phase cross arm construction or secondary service wire.

These Spool Bolts are forged from open-hearth carbon steel with either a single phase or double integral washer upset at the insulator end.

Rolled thread and are fumished complete as llustrated.

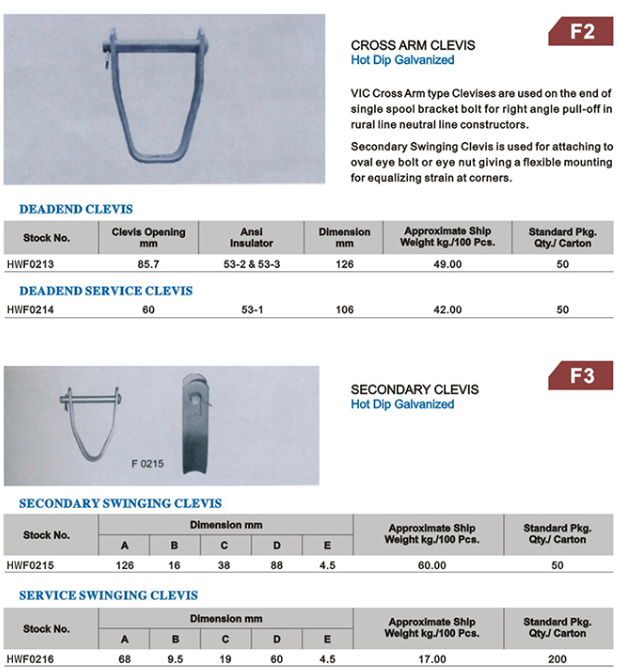

CROSS ARM CLEVIS

Hot Dip Galvanized

VIC Cross Arm type Clevises are used on the end of single spool bracket bolt for right angle pull-off in rural line neutral line constructors.

Secondary Swinging Clevis is used for attaching to oval eye bolt or eye nut giving a flexible mounting for equalizing strain at corners.

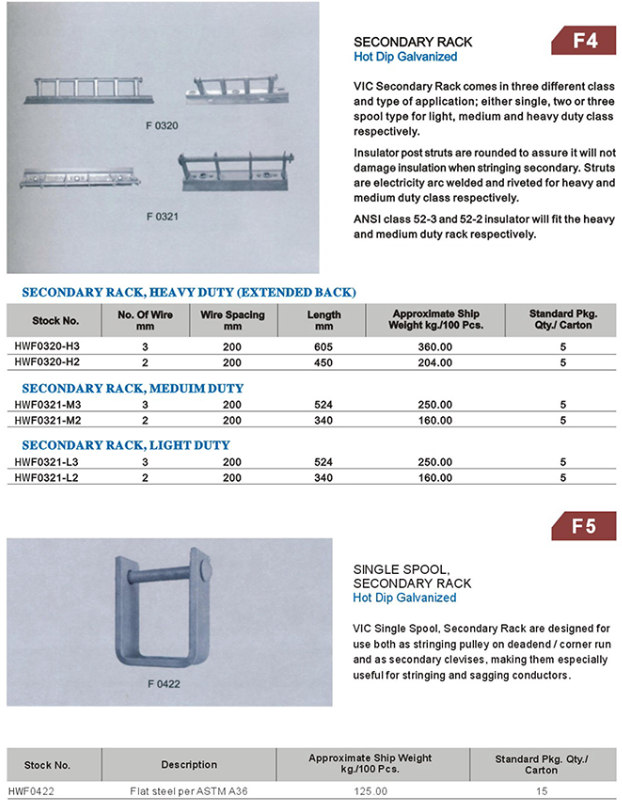

SECONDARY RACK

Hot Dip Galvanized

VIC Secondary Rack comes in three different class and type of application; either single, two or three spool type for light, medium and heavy duty class rospectively.

Insulator post struts are rounded to assure it will not damage insulation when stringing secondary. Struts are electricity arc welded and riveted for heavy and medium duty class respectively.

ANSI class 52-3 and 52-2 insulator will fit the heavy and medium duty rack respectively.

SINGLE SPOOL, SECONDARY RACK

Hot Dip Galvanized

VIC Single Spool, Secondary Rack are de signed for use both as stringing pulley on deadend/ corner run and as secondary clevises, making them especially usefulfor stringing and sagging conductors.

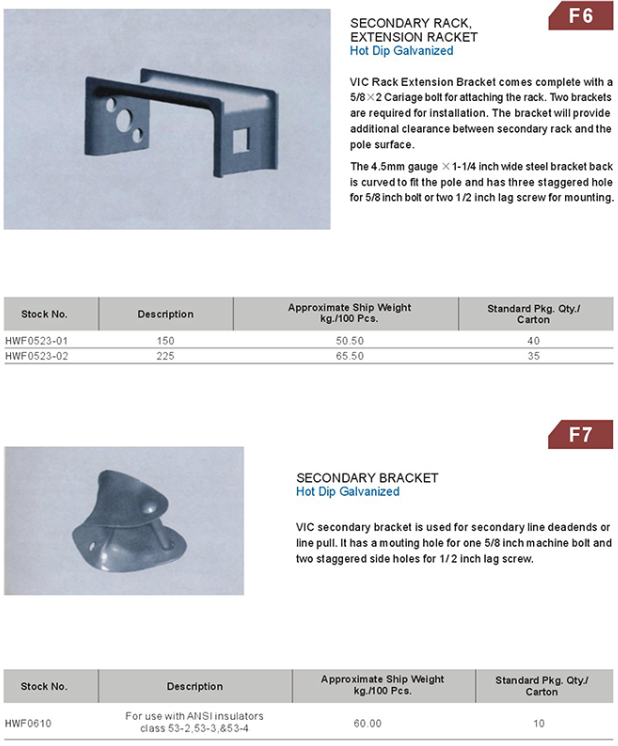

SECONDARY RACK, EXTENSION RACKET

Hot Dip Galvanized

VIC Rack Extension Bracket com es complete with a 5/8X2 Cariage bolt for attaching the rack. Two brackets are required for installation. The bracket will provide additional clearance between secondary rack and the pole surface.

The 4.5mm gauge X 1-1/4 inch wide steel bracket back is curved to ft the pole and has three staggered hole for 5/8inch bolt or two 1/2 inch lag screw for mounting.

SECONDARY BRACKET

Hot Dip Galvanized

VIC secondary bracket is used for secondary line deadends or line pull. It has a mouting hole for one 5/8 inch m achine bolt and two staggered side holes for 1/2 inch lag screw.
