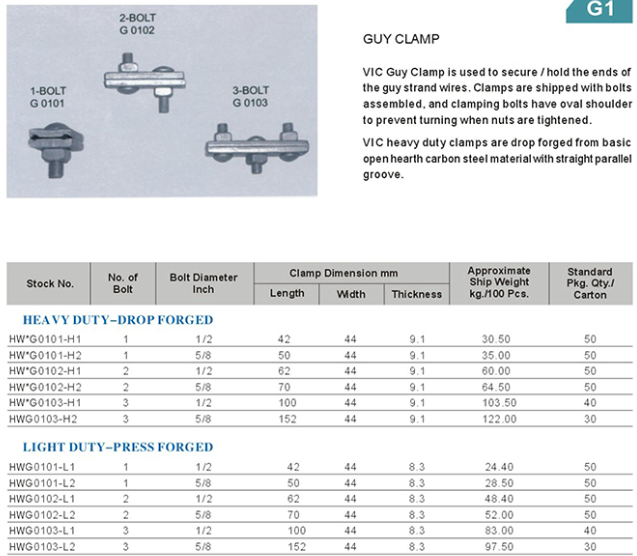

GUY CLAMP

VIC Guy Clamp is used to secure I hold the ends of the guy strand wires. Clamps are shipped with bolts assembled, and clamping bolts have oval shoulder to prevent turning when nuts are tightened.

VIC heavy duty clamps are drop forged from basic open hearth carbon steel materialwith str aight parallel groove.

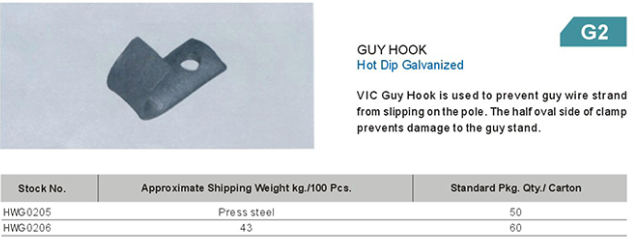

GUY HOOK

Hot Dip Galvanized

VIC Guy Hook is used to prevent guy wire strand from slipping onthe pole. The half oval side of clamp prevents damage to the guy stand.

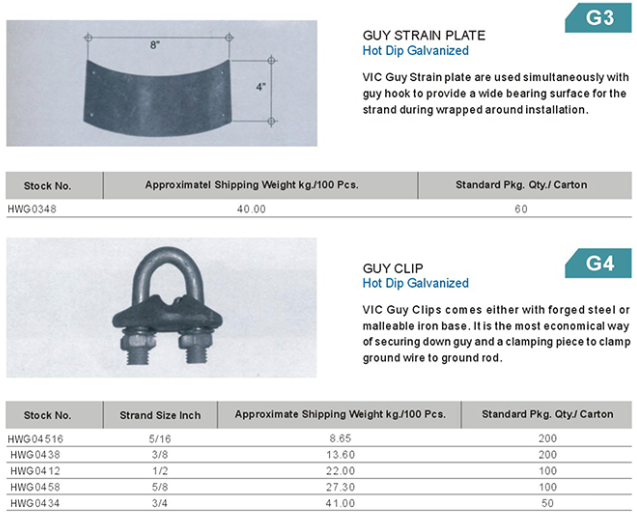

GUY STRAIN PLATE

Hot Dip Galvanized

VIC Guy Strain plate are used simultaneously with guy hook to provide a wide bearing surface for the strand during wrapped around installation.

GUY CLIP

Hot Dip Galvanized

VIC Guy Clips com es either with forged steel or malleable iron base. It is the most economical way of securing down guy and a clamping piece to clamp ground wire to ground rod.

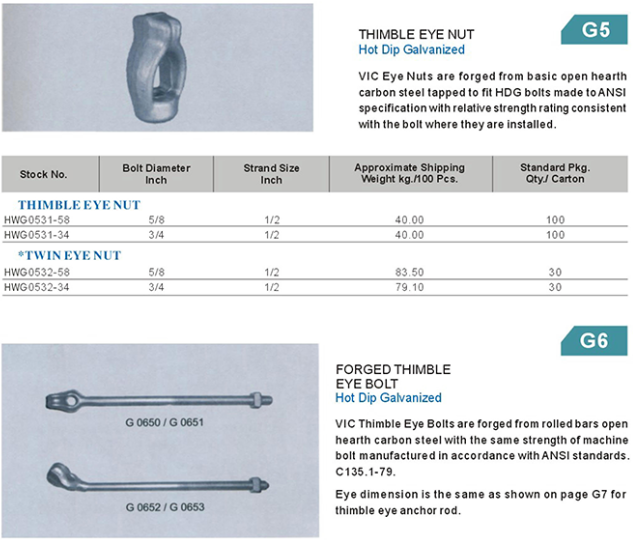

THIMBLE EYE NUT

Hot Dip Galvanized

VIC Eye Nuts are forged from basic open hearth carbon steel tapped to fit HDG bolts made to ANSI specification with relative strength rating consistent with the bolt where they are installed.

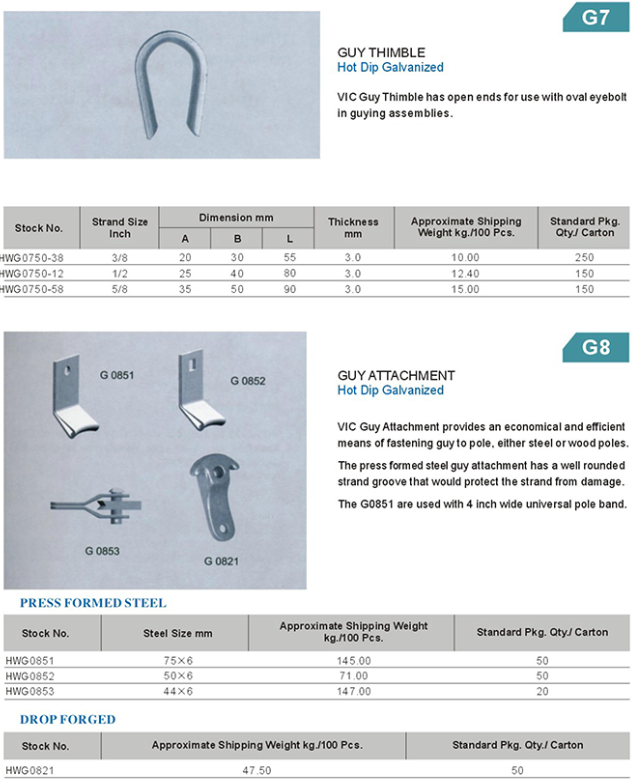

GUY THIMBLE

Hot Dip Galvanized

VIC Guy Thimble has open ends for use with oval eyebolt in guying assemblies.
