YUANKY relay 40A 16VDC smrat home high temperature resistance 100 ohms relay
|
MALA |
S |
1 |
12 |
A |
X |
|
Product model |
Product structure |
Number of contact groups |
Coil voltage |
Contact form |
Special features |
|
S: plastic seal type None: solder resist type |
1: 1 group |
12: 12V |
A: NO |
1: ordinary X: customer special request |
|
Contact parameters |
Performance parameters |
||
|
Contact form |
1A |
Medium pressure |
Between contacts and coils: 500VAC 1min |
|
Contact material |
Silver alloy |
Between open contacts: 500VAC 1min |
|
|
Contact resistance (initial) |
Typical value 30mV (at 10A) |
Action time |
≤10ms |
|
Maximum value 300mV (at 10A) |
Release time |
≤5ms |
|
|
Rated load (resistive) |
40A 16VDC |
Ambient temperature |
-40℃~+125℃ |
|
Maximum switching current |
40A |
Vibration |
10Hz~55H, 49m/s2 (5G) |
|
Impact |
294m/s2 Closing time of NO contacts ˂ 100µs |
||
|
Maximum switching voltage |
16VDC |
980m/s2 Closing time of NC contacts ˂ 100µs |
|
|
Terminal mode |
Printed circuit board terminals |
||
|
Electrical life |
100000 times |
Package form |
Plastic seal type, solder resist type |
|
Mechanical life |
1000000 times |
Weight |
About 11g |

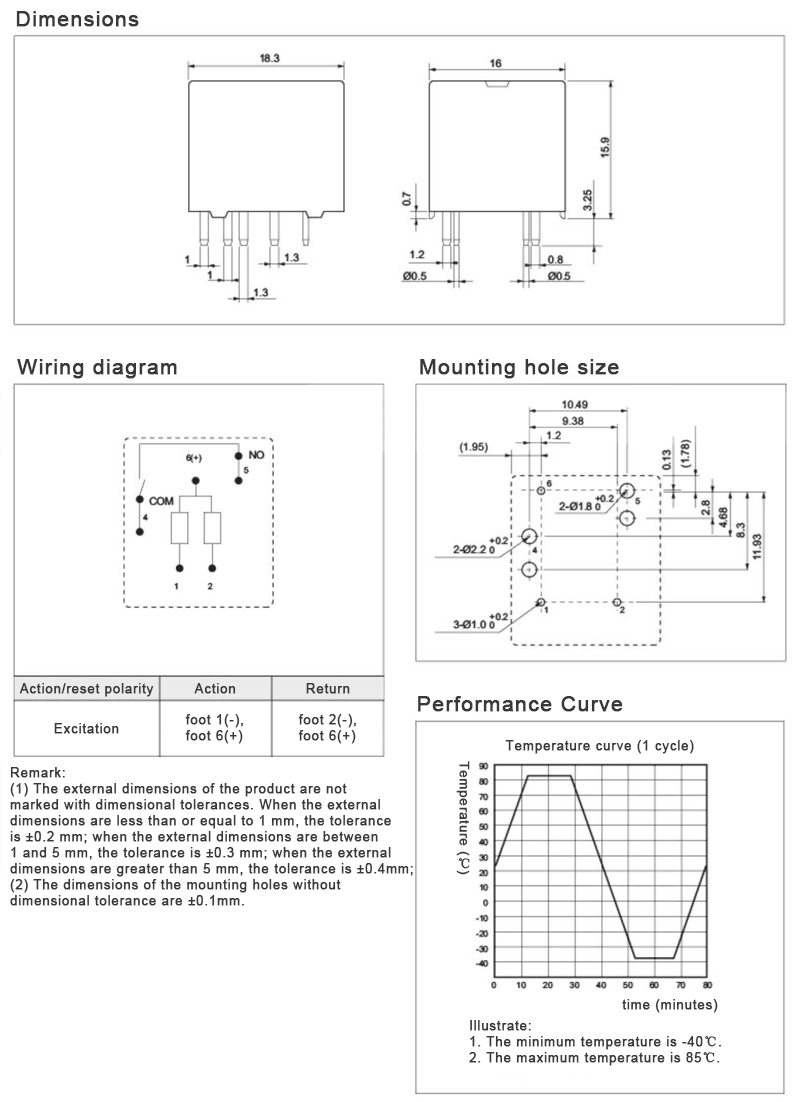

Coil Spec Sheet (23℃)
|
Rated voltage VDC |
Operating voltage VDC |
Reset voltage VDC |
Pull-in coil resistance Ω±10% |
Reset coil resistance Ω±10% |
Coil power W |
Maximum allowable coil voltage*2 VDC |
|
12 |
≤ 8.4 |
≤ 6.9 |
20 |
19 |
About 7.2 |
18 |
