YUANKY MCCB lockout series easy to install 8mm molded case circuit breaker safety padlock

Short Description:

A circuit breaker lock is a kind of electrical protection appliance, especially a lock used to prevent the circuit breaker from being misoperated. Switching devices that carry and break currents under abnormal circuit conditions (including short-circuit conditions) for a specified period of time

Simple circuit breaker lock:

a. Made of engineering plastics reinforced nylon PA.

b. Various types of circuit breakers can be locked.

c. Locking is achieved with a screwdriver.

d. The diameter of the keyhole is 8mm

Send email to us Download as PDF

Product Detail

Product Tags

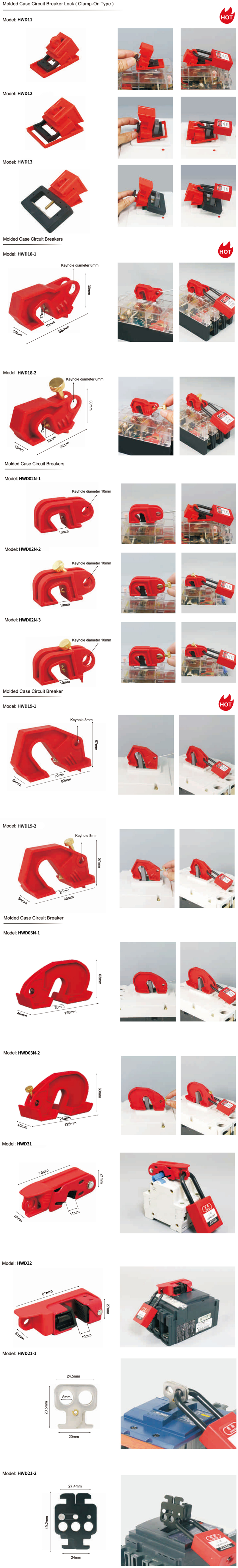

Model	Description	Material	Requirements
HWD11	Suitable for handle width≤16.5mm molded case circuit breaker	Engineering plastic ABS	Confirm the width and thin of the circuit breaker handle. Select the suitable specification according to the sheet as left
HWD12	Suitable for handle width 16.5~40mm molded case circuit breaker
HWD13	Suitable for handle width 41~70mm molded case circuit breaker
HWD18-1	Fixed with a small flat blade screwdriver, padlock keyhole 8mm	Nylon PA	Suitable for circuit breaker handle thickness within 10mm within 17mm in height, there is no limit to the width
HWD18-2	With handle, manual fixation, padlock keyhole 8mm
HWD02N-1	Small flat blade screwdriver	Nylon PA	Suitable for circuit breaker handle thickness within 10mm within 17mm in height, there is no limit to the width
HWD02N-2	With handle, manual fixation
HWD02N-3	With handle, manual fixation, with needle design at the bottom
HWD19-1	Fixed with a small flat blade screwdriver, padlock keyhole 8mm	Nylon PA	Suitable for circuit breaker handle thickness no limit within 20mm width
HWD19-2	With handle, manual fixation, padlock keyhole 8mm
HWD03N-1	Fixed with a small flat blade screwdriver, padlock lock hole 10mm	Nylon PA	Suitable for circuit breaker handle thickness no limit within 20mm width
HWD03N-2	With handle, manual fixation, padlock keyhole 10mm
HWD31	Suitable for locking multiple types of miniature circuit breakers	Mount: aluminum alloy Handle: industrial plastic PA66	The keyhole is directly 8mm without tools, easy to lock
HWD32	Suitable for locking multiple types of miniature circuit breakers
HW21-1	Suitable for EZD type, EZC100 type	Standard A3 steel plate	It is suitable for locking the molded case circuit breakers with holes on both sides of the slot
HW21-2	Suitable for NSX type circuit breakers
