YUANKY DC Exchange Confluence Box 4 strings 550V 1000V IP65 plastic solar power PV array combiner box

Short Description:

MDHL-4/1 Exchange Confluence Box

Scope of application

MDHL-4/1 combiner box is suitable for the maximum input voltage of inverter DC550v / DC1000V. The box is made of PVC engineering materials, and has fire resistance, temperature rise, impact resistance, UV resistance and other tests. The protection grade reaches IP65. The product is designed and configured in strict accordance with the requirements of CGC / GF 037:2014 “technical specification for photovoltaic convergence equipment”, so as to provide users with a safe, simple, beautiful and applicable photovoltaic system product.


Product Detail

Product Tags

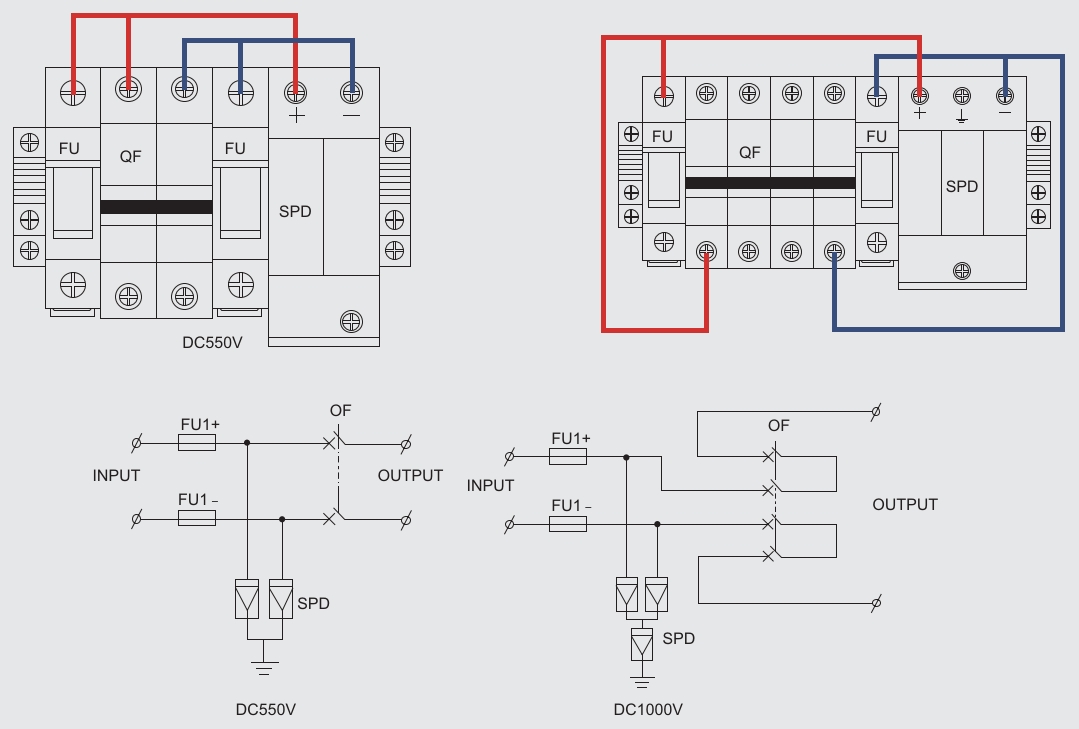

PV combiner box

Electrical Technical Parameters

Model

MDHL-4/1-PV1/1

MDHL-4/1-PV2/1

MDHL-4/1-PV4/1

MDHL-4/1-PV4/2

Electrical parameters
Maximum DC voltage of the system

550

1000

550

1000

550

1000

550

1000

Maximum input current of each circuit

20A

20A

20A

20A

Maximum number of input channels

1

2

4

4

Maximum output switching current

16A/20A

20A/32A

50A/63A

20A/32A

Number of inverter MPPT

1

1

1

2

Output modes

1

1

1

2

Lightning protection
Test category

Ⅱ pole protection

Ⅱ pole protection

Ⅱ pole protection

Ⅱ pole protection

Nominal discharge current

20kA

20kA

20kA

20kA

Maximum discharge current

40kA

40kA

40kA

40kA

Voltage protection level

2.8kV

3.8kV

2.8kV

3.8kV

2.8kV

3.8kV

2.8kV

3.8kV

Maximum continuous operating voltage

630V

1050V

630V

1050V

630V

1050V

630V

1050V

Number of poles

2P

3P

2P

3P

2P

3P

2P

3P

Structural features

Pluggable module

Pluggable module

Pluggable module

Pluggable module

System
Degree of protection

IP65

Output switch

DC circuit breaker (standard) / DC rotary disconnector (optional)

SMC4 waterproof joint

Standard configuration

Photovoltaic DC fuse

Standard configuration

Photovoltaic DC surge protector

Standard configuration

Monitoring module

N

Anti inversion diode

N

Anti inversion diode

PVC

Installation mode

Wall mounted

Working temperature

-25~+55

Altitude

2000m

Allowable relative humidity

0~95% no condernsation

Mechanical parameter

W×H×D (mm)

215×210×

100

300×260×

140

215×210×

100

300×260×

140

410×285×

140

300×415×

140

300×260×

140

410×285×

140
