N7D
RESIDUAL CURRENT CIRCUIT BREAKER

General

The item is in comply with standard of IEC61008-1, applying to the circuit of AC 50/60Hz,230V single phase,400V three phases or below it for industrial and mining enterprise, trade building, commerce and family. It is mainly used for preventing electric fire and personal casual accident caused by personal electric shock or leakage of electrified wire net, this is a current operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won’t be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector differential value of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of vector differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.

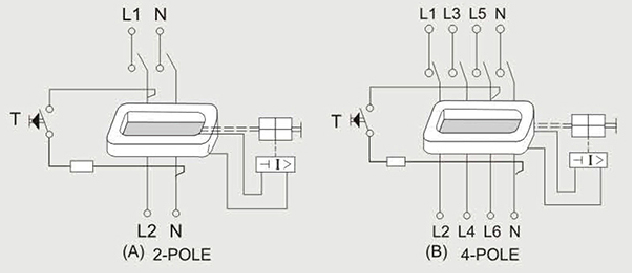

Working principle

Specifications



Standard



IEC/EN 61008

Electrical features

Mode



Electro-magnetic type, electronic type

Type(wave form of the earth leakage sensed)



A,AC

Rated current In

A

16,25.32,40.63

Poles

P

2.4

Rated voltage Ue

V

AC 240/415

Rated sensitivity l△n

A

0.01,0.03,0.1.0.3,0.5

Insulation voltage Ui

V

500

Rated residual making and breaking capacity l△m

A

630

Short-circuit current l△c

A

4500,6000

SCPD fuse

A



Rated frequency

Hz

50/60

Pollution degree



2

Electrical life

t

6000

Mechanical life

t

10000

Mechanical features

Protection degree



IP20

Ambient temperature (with daily average≤35℃

r

-25-+40

Storage temperature

c

-25-+70

Installation

Terminal connection type



Cable/pin-type busbar

Terminal size tap/botlom for cable

mm²

25

AWG

18-3

Terminal size top/bottom for busbar

mm’

25

AWG

18-3

Tightening torque

N*m

2.5

In-lbs.

22

Mounting



On DIN rall EN 6071 5(35mm)by means of fast clip device

Connection



From top and bottom

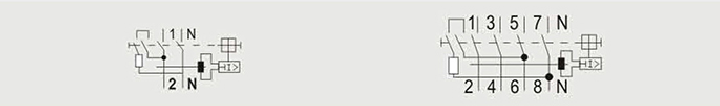

Wiring Diagram

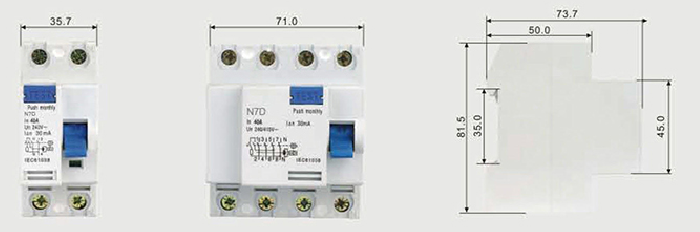

Overall and mounting dimensions(mm)
