Rated Voltage | 230V/400V;50/60Hz | |
Rated breaking capacity | 10kAIEC898(0.5~63A) | |
Short circuit breaking capa of DC | Max 48VIS7.….,10kA)Multipole | |
Max 250VIS7.,6kA)Multipole | ||
Trip characteristic | C,D Type Characteristic curve | |
Max fuse than can be connected to | 100A gL(>10kA) | |
Selection grade | 3 | |
Work environment temperature | -5 to+40℃ | |
Case protection grade | IP40|lnstall after) | |
BH-M6 | 40℃ | |
Life | Electric | Not less of 8000 times switching operation |
Mechanical | Not less of 20000 times switching operation |

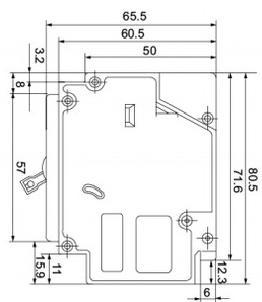

The length of exposed plane | 45mm |
Enclosure height | 80mm |
Enclosure width | 17.5mm every pole(mountly manner) |
Mountly manner | The standard IEC35mm rail |
Terminal manner |
Dual purpose terminal can connect generatrix and wire |
Terminal block capacity | Conductor1-25mm;Generatrix thickness 0.8-2mm |
■ Conforming of latest standard of IEC and GB10963-99
■Accurate current tripping and setting
■ High breaking capability up to 10kA
■High current limitation capability to realize the high selection
■ Dual-terminal at two sides is suitable for the busway and single-core conductor
■ Multiple-function accessories series
■ Wiring screw of combined channel with large torque and solid wiring and rapid wiring
■ Free incoming-line direction of power supply
DC product could be used at the fields such as communication or electric vehicle and so on
Type | S7-0.5/3/C,S7-1/3/C,S7-2/3/CS7-3/3/C,S7-4/3/C,S7-6/3/C
S7-10/3/C,S7-16/3/C,S7-20/3/C S7-25/3/C,S7-32/3/C,S7-40/3/C S7-50/3/C,S7-63/3/C |
S7-2/3/D,S7-4/3/D,S7-6/3/D S7-10/3/D,S7-16/3/D,S7-20/3/D S7-25/3/D,S7-32/3/D.S7-40/3/D |
S7-6/1N-2/C,S7-10/3N-2/C S7-20/3N-2/C,S7-25/3N-2/CS7-32/3N-2/C,S7-40/3N-2/CS7-50/3N-2/C,S7-63/3N-2/C | ||
S7-1/4/C,S7-3/4/C,S7-6/4/C
S7-10/4/C,S7-16/4/C,S7-20/4/C S7-25/4/C,S7-32/4/C,S7-40/4/C S7-50/4/C,S7-63/4/C |
S7-2/3N/D,S7-4/3N/D,S7-6/3N/D S7-10/3N/D,S7-16/3N/D,S7-20/3N/D S7-25/3N/D,S7-32/3N/D.S7-40/3N/D | |
Rated current In(A | 0.5,1.2,3.4,6,10,16,20.25.32,40,50,63 | 2,4,6,10,16,20,25,32,40 |
Applied to multipole S7 series
Corresponding temperature and the permissible working load of n switches:lo=1,K-ITJKn(N)
Switch entries(n)
MCB Load power
Environment T(℃) | |||||||||||||
In(A) | -25 | -20 | -10 | 0 | 10 | 20 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
1 | 1.2 | 1.2 | 1.2 | 1.1 | 1.1 | 1.0 | 1.0 | 0.99 | 0.97 | 0.95 | 0.93 | 0.90 | 0.89 |
2 | 2.4 | 2.4 | 2.3 | 2.2 | 2.2 | 2.1 | 2.1 | 2.0 | 1.9 | 1.9 | 1.9 | 1.8 | 1.8 |
3 | 3.4 | 3.6 | 3.5 | 3.4 | 3.3 | 3.1 | 3.0 | 3.0 | 2.9 | 2.8 | 2.8. | 2.7 | 2.7 |
4 | 4.9 | 4.8 | 4.7 | 4.5 | 4.3 | 4.2 | 4.0 | 3.9 | 3.9 | 3.8 | 3.7 | 3.6 | 3.5 |
5 | 6.1 | 6.0 | 5.8 | 5.6 | 5.4 | 5.2 | 5.0 | 4.9 | 4.8 | 4.7 | 4.6 | 4.5 | 4.4 |
6 | 7.3 | 7.2 | 7.0 | 6.7 | 6.5 | 6.3 | 6.0 | 5.9 | 5.8 | 5.7 | 5.6 | 5.4 | 5.3 |
10 | 12 | 12 | 12 | 11 | 11 | 10 | 10 | 9.9 | 9.7 | 9.5 | 9.3 | 9.0 | 8.9 |
15 | 18 | 18 | 17 | 17 | 16 | 16 | 15 | 15 | 15 | 14 | 14 | 14 | 13 |
16 | 20 | 19 | 19 | 18 | 17 | 17 | 16 | 16 | 16 | 15 | 15 | 14 | 14 |
20 | 24 | 24 | 23 | 22 | 22 | 21 | 20 | 20 | 19 | 19 | 19 | 18 | 18 |
25 | 31 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 24 | 23 | 23 | 23 | 22 |
32 | 39 | 38 | 37 | 36 | 35 | 33 | 32 | 32 | 31 | 30 | 30 | 29 | 28 |
40 | 49 | 48 | 47 | 45 | 43 | 42 | 40 | 39 | 39 | 38 | 37 | 36 | 35 |
50 | 61 | 60 | 58 | 56 | 54 | 52 | 50 | 49 | 48 | 47 | 46 | 45 | 44 |
63 | 77 | 76 | 73 | 71 | 68 | 66 | 63 | 62 | 61 | 60 | 58 | 57 | 56 |
