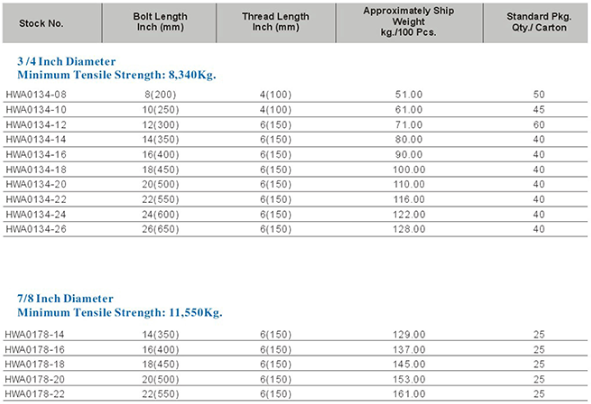

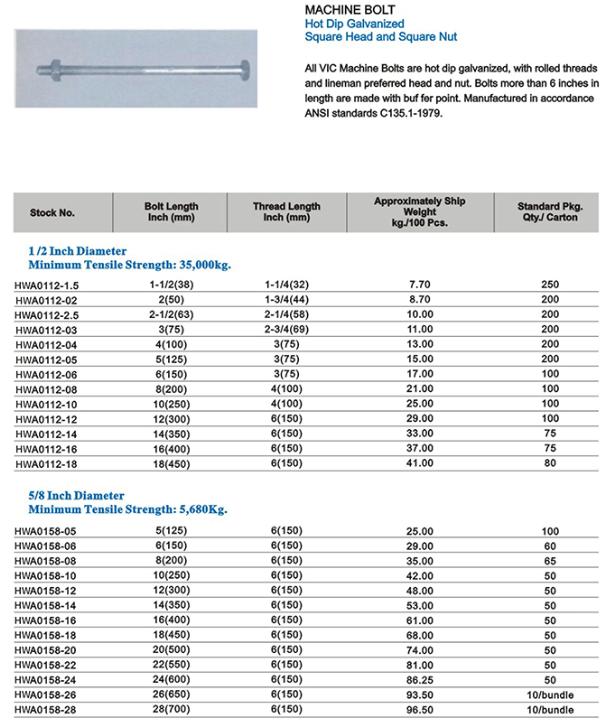

MACHINE BOLT

Hot Dip Galvanized

Square Head and Square Nut

All VIC Machine Bolts are hot dip galvanized, with rolled threads and lineman preferred head and nut. Bolts more than 6 inches in length are made with buf fer point. Manufactured in accordance ANSI standards C135.1-1979.

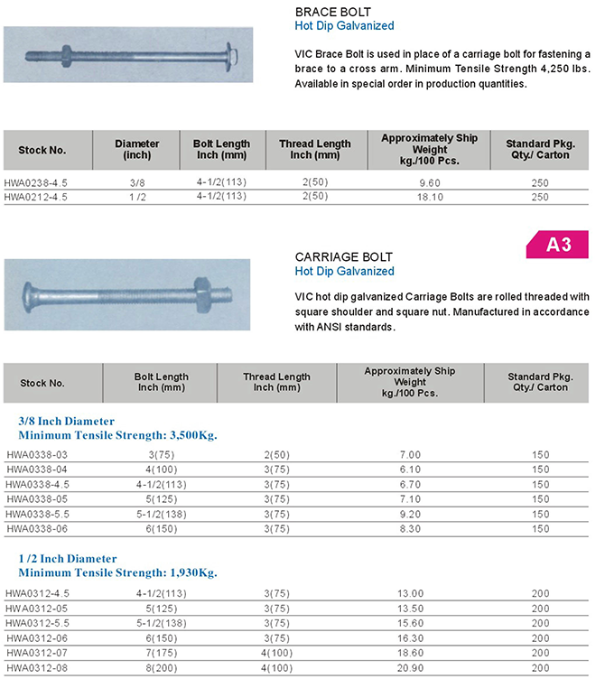

BRACE BOLT

Hot Dip Galvanized

VIC Brace Bolt is used in place of a carriage bolt for fastening a brace to a cross arm. Minimum Tensile Strength 4,250 Ibs. Available in special order in production quantities.

CARRIAGE BOLT

Hot Dip Galvanized

VIC hot dip galvanzed Carriage Bolts are rolled thre aded with square shoulder and square nut. Manufactured in accordance with ANSI standards.

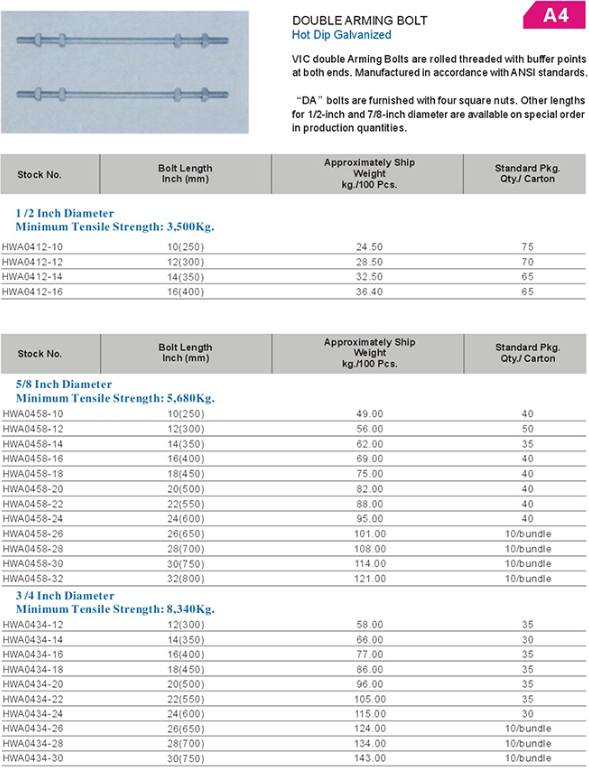

DOUBLE ARMING BOLT

Hot Dip Galvanized

VIC double Arming Bolts are rolled threaded with buffer points at both ends. Manufactured in accordance with ANSI standards.

“DA” bolts are furnished with four square nuts. Other lengths for 1/2-inch and 7/8-inch diameter are available on special order in production quantities.

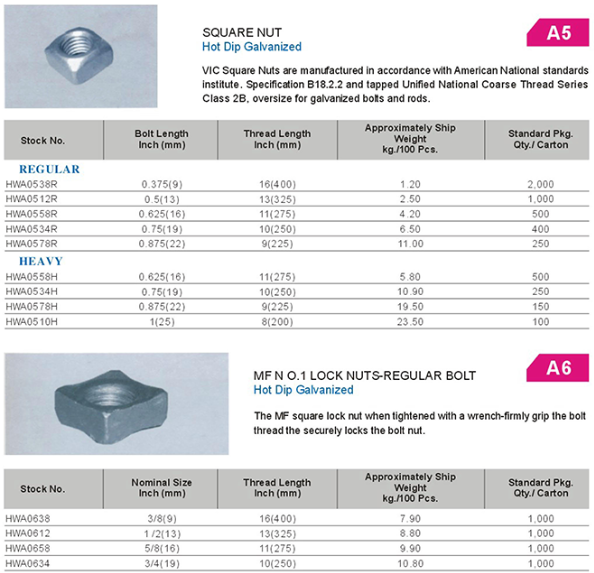

SQUARE NUT

Hot Dip Galvanized

VIC Square Nuts are manufactured in accordance with American National standards instiute. Specification B18.2.2 and tapped Unified National Coarse Thread Series Class 2B, oversize for galvanized bolls and rods.

MF N 0.1 LOCK NUTS-REGULAR BOLT

Hot Dip Galvanized

The MF square lock nut when tightened with a wrench-firmly grip the bolt thread the securely locks the bolt nut.

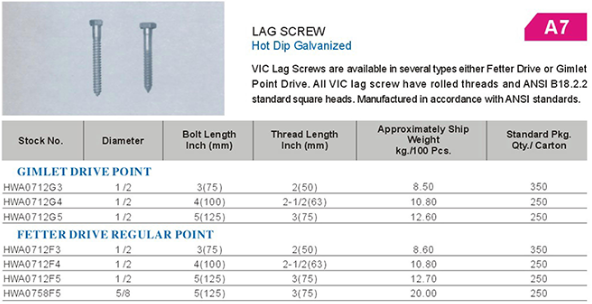

LAG SCREW

Hot Dip Galvanized

VIC Lag Screws are avilable in several types either Fetter Drive or Gimlet Point Drive. All VIC lag screw have rolled threads and ANSI B18.2.2 standard square heads. Manufacured in accordance with ANSI standards.

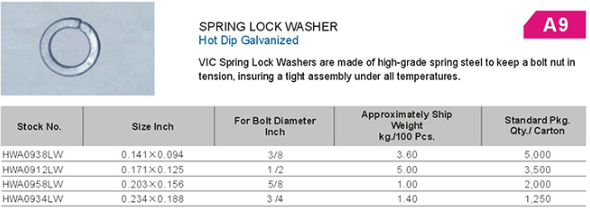

SPRING LOCK WASHER

Hot Dip Galvanized

VIC Spring Lock Washers are made of high-grade spring steel to keep a bot nut in tension, insuring a tight assembly under all temperatures.
