Monoblock Multi-Pole SPD BY1-25-XXX/1S+1
Technical Data
IEC Electrical
| NominalAC Volage(50/60Hz) | 120V | 230V | 230V | 230V | ||
| Maximum Continuous Operating Voltage(AC)
|
(L-N) | Uc | 150V | 275V | 320V | 385V |
| (N-PE) | Uc | 255V | 255V | 255V | 255V | |
| Nomina Discharge Current(8/20μs) | (L-N)/(N-PE) | I。 | 25 kA/50KA | |||
| Maximum Discharge Current(8/20μs) | (L-N)/(N-PE) | lmax | 100 kA | |||
| Impulse Discharge Current(10/350 μs) | (L-N)/(N-PE) | limp | 25 kA/50KA | |||
| Total Discharge Current(10/350μs) | ltotal | 50 kA | ||||
| Specific Energy | (L-N)/(N-PE) | W/R | 156 kJ/ /625KJ/ | |||
| Charge | (L-N)/(N-PE) | Q | 12.5As/25As | |||
| Voltage Protection Level | (L-N)/(N-PE) | Up | 1000V/1500V/1500 V/1500V/1600V/1500V/1800V/1500V | |||
| Follow Current Interruptt Rating | (N-PE) | I | 100A RMS | |||
| Response Time | (L-N)/(N-PE) | tA | <25 ns/<100ns | |||
| Back-Up Fuse(max) | 315A gL/gG | |||||
| Short-Circuit Current Rating(AC) | (L-N) | lscCR | 50 kA | |||
| TOV Withstand 5s | (L-N) | UT | 180V | 335V | 335V | 335V |
| TOV 120min | (L-N) | UT | 230V | 440V | 440V | 440V |
| TOV Withstand 200s | (N-PE) | UT | 1200V | |||
| Number of Ports | 1 | |||||
Mechanical &Environmental
| Operating Temperature Range | Ta | -40 F to+158F[-40℃ to+70℃I |
| Permissible Operating Humidity | RH | 5%…95% |
| Atmospheric pressure and altitude | 80k Pa...106k Pa/-500m...2000m | |
| Terminal Screw Torque | Mmax | 26.5 Ibf-in [3.0 Nm] |
| Conductor Cross Section(max) | 2AWG (Solid,Stranded)/4AWG(Flexible) | |
| 35mm²(Solid,Stranded)/25 mm²(Flexible) | ||
| Mounting | 35 mm DIN Rail.EN 60715 | |
| Degree of Protection | IP 20(built-in) | |
| Housing Material | Thermoplastic:Extinguishing Degree UL94V-0 | |
| Thermal Protection | Yes | |
| Operating State/Fault Indication | Green ok/Red defect | |
| Remote Contacts(RC) | Optional | |
| RC Switching Capacity | AC:250V /0.5 ABC:250V/0.1 A:125V/0.2 A;75V/0.5A | |
| RC Conductor Cross Section(max) | 16AWG(Solid)/1.5mm²(Sold) |
Order Information
| Order Code | 150 | 275 | 320 | 385 |
| BY1-25-XXX/1+1 | 2515013 | 2527513 | 2532013 | 2538513 |
| BY1-25-XXX/1S+1(with remote contacts) | 2515014 | 2527514 | 2532014 | 2538514 |

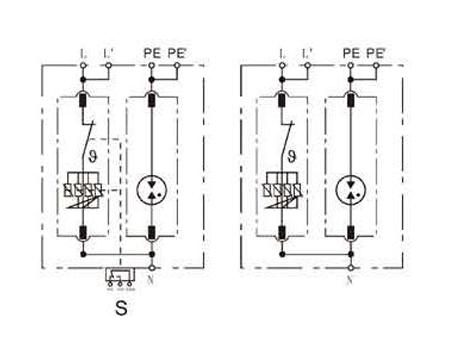

Internal Configuration
Legend
L/L' Line
N Neutral
PE/PE’ Protective Earth
S Signalling Contacts Optional

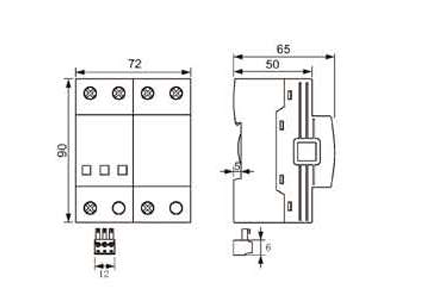

Dimensions &Packaging
|
Dimensions &Packaging |
|||||
| BY1-25-XXX/1(S)+1 |
150 |
275 |
320 |
385 |
440 |
| Single Unit DIN 43880 Dimension |
1 CTN |
||||
| Packaging Dimensions(H×W×L) |
[260×230×320mm] |
||||
| Minimum Order Quantity |
24 Units |
||||

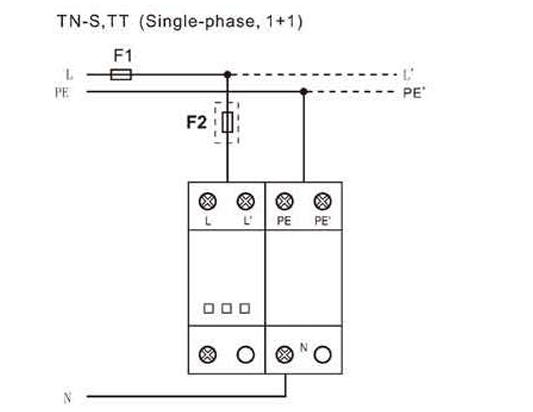

Connection Diagram
