Hot New Products Lightning Arrester - transformer Electrical supply 12KV 24KV 36KV 40.5KV prefabricated compact transformer – Hawai Detail:

Application

HW-PCT1 series products is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixed connection scheme. This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV/24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.Standards: IEC60076,IEC1330,ANSI/IEEE C57.12.00 ,C57.12.20 ,C57.12.90,BS171 ,SABS 780

Service condition

A.Both indoor or outdoor

B.Air temperature:Maximum temperature: +40C; Minimum temperature:-25C

C. Humidity:Monthly average humidity 95%; Daily average humidity 90% .

D. Altitude above sea level:Maximum installation altitude: 2000m. .

E. Ambient air not apparently polluted by corrosive and flammable gas, vapor etc. .

F. No frequent violent shake

Note: * Beyond those services condition should enquiry to manufacturer technical dept during order

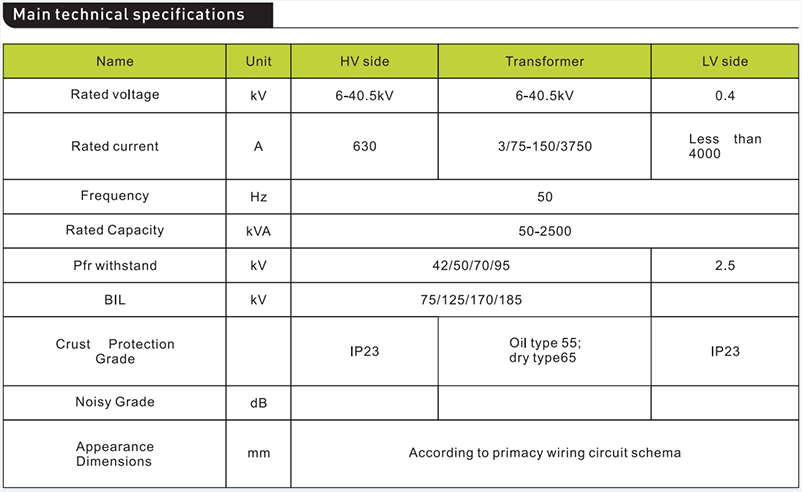

Note: *The above parameter is only subject to our standard design, special requirement can be customized
