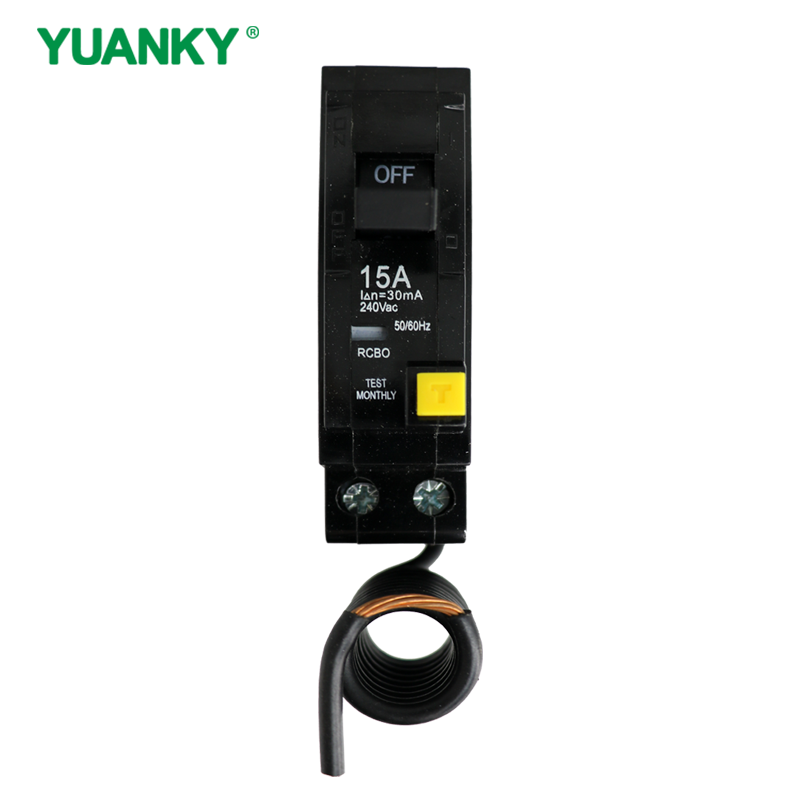

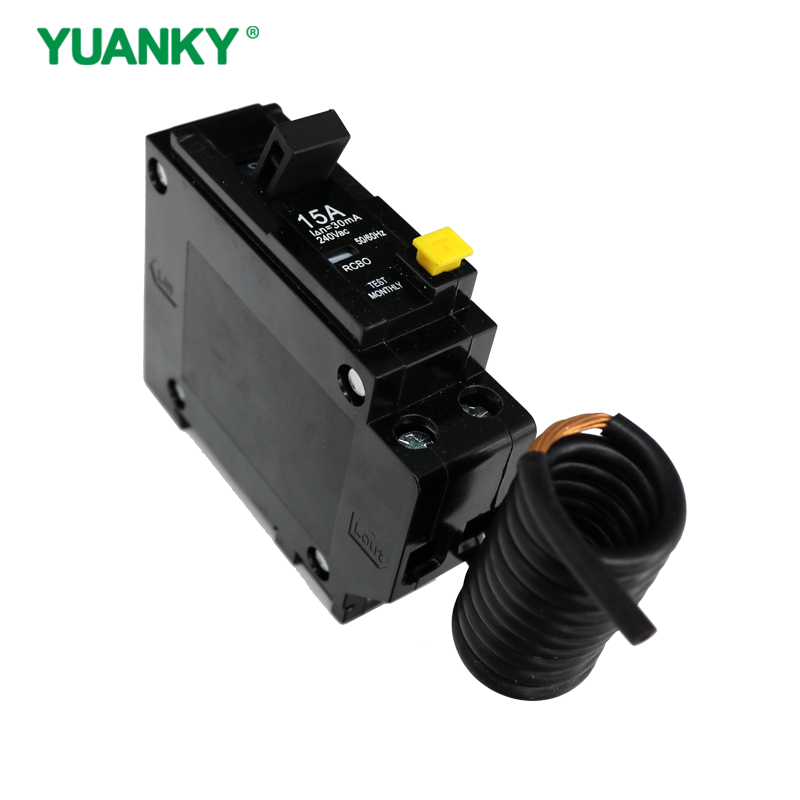

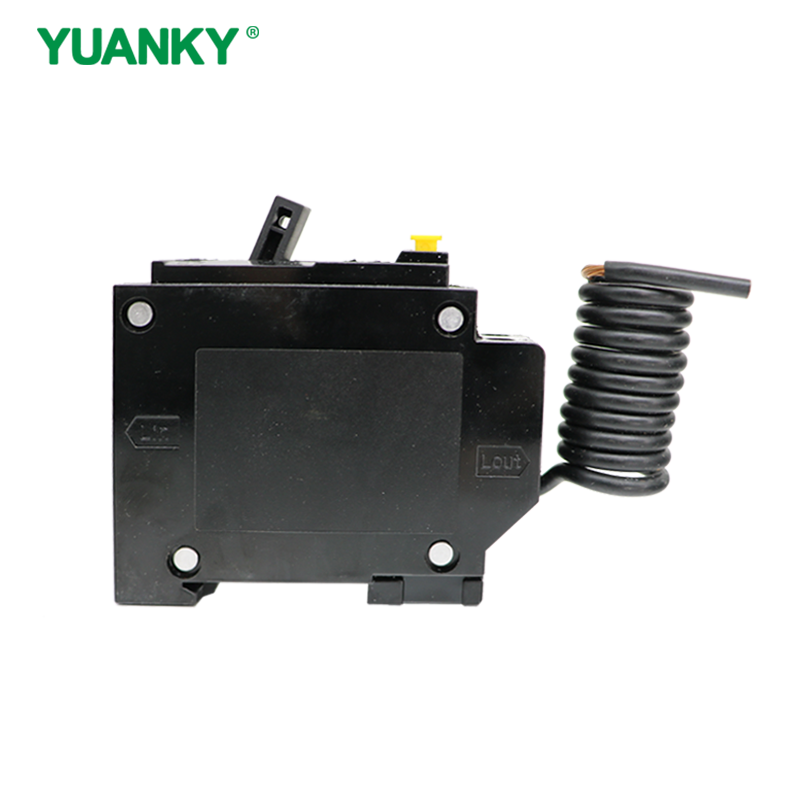

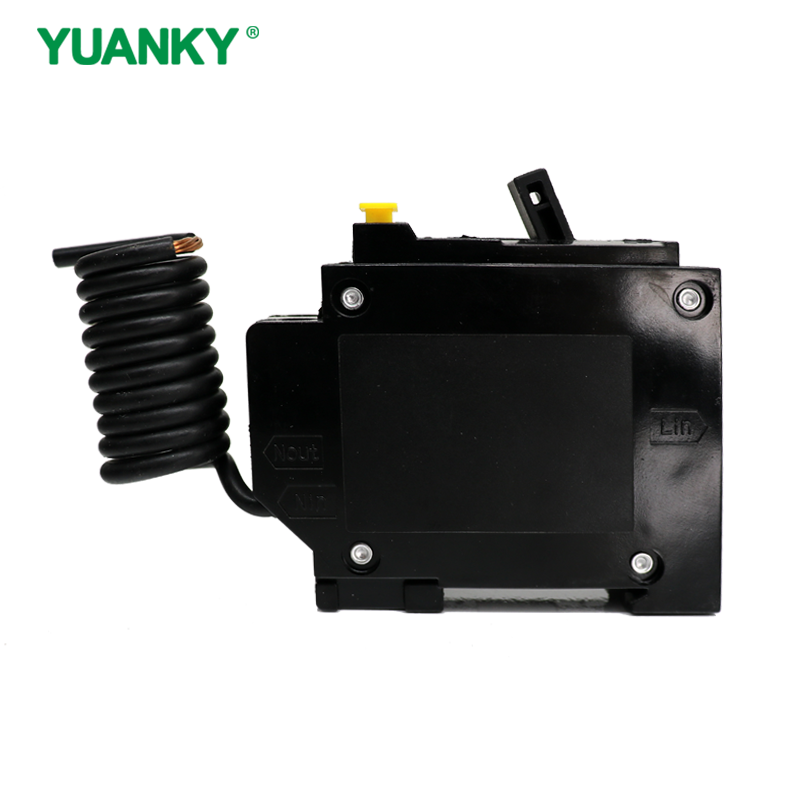

BLACK N7BY Residual Current Circuit Breaker With OverCurrent Protection (RCBO)
Short Description:
Product Drawing Size
Wiring Diagram
Characteristic Curve
| item | value |
| BCD Curve | C |
| Breaking Capacity | 30ma |
| Rated Voltage | 240VAC |
| Model Number | |
| Brand Name | YUANKY |
| Place of Origin | China |
| Zhejiang | |
| Application | Industrial, Households |
| Mounting Type | Rail Mounting |
| Protection | Other |
| Rated Frequency (Hz) | 50/60 Hz |
| Type | AC MCB |
| Rated current | 1/2/3/4/6/10/16/20/25/32/40/50/63A |
| Rated voltage | 240VAC |
| Rated frequency | 50/60 Hz |
| Number of poles | 1/2/3/4P |
| Breaking capacity operating | 30ma |
| Type | Mini |
| Poles Number | 1,2,3,4 |
Technical Data&Standard
■ Rated currents A):6A,10A,16A,20A,25A,32A,40A
■ Rated voltage VAC):110/220,120/240
■ Rated frequency(Hz):50/60Hz
■ Curve type:A/AC
■ Terminal size top for cable:16mm²
■Terminal size bottom for cable:16mm²
■ Mounting:Plug-in type
■ IEC/EN 61009-1

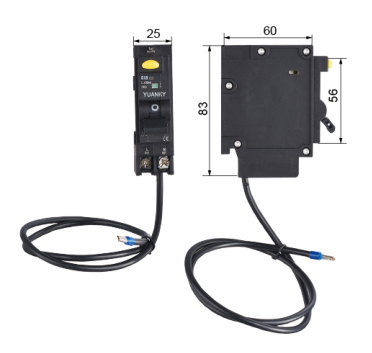

Product Drawing Size

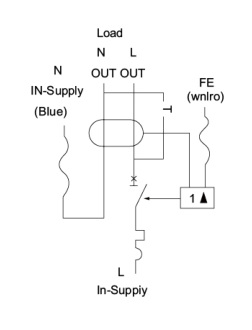

Wiring Diagram

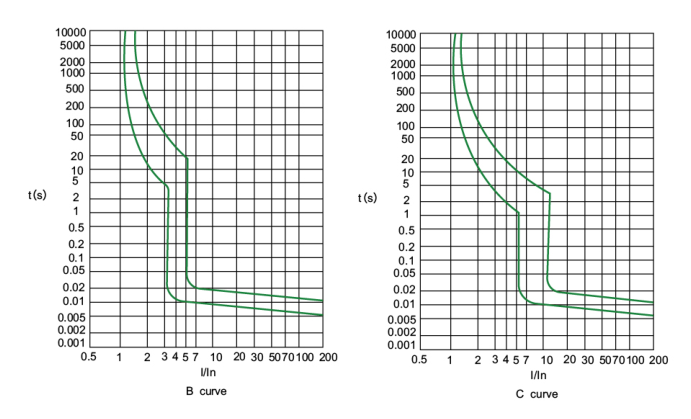

Characteristic Curve
