BH-P Plug in Type Circuit Breaker
Applications
BH-P plug in type series is applicable to branching circuit breakers,They are for power distribution boards,and products compatible for affixation to DIN rails are also available.
Widely used in guesthouses,block of flats.high buildings.squares,airports.railway stations, plants and enterprises etc,in AC circuits 240V /single polelup to 415V(3 pole)50Hz for protection of overload short circuit and for circuit change-over in lighting system.Breaking capacity is 3KA. The items comply with IEC60898 standard.
Specification
| Type | BH-P plug in type |
| Number of Poles | 1P,2P,3P |
|
Rated current (A)at ambient temperature 40℃ |
6,10,15,20,25,30,40,50,60,70,80,100 |
| Rated Voltage(M | AC230/400 |
| Breaking Capacity(A) | AC230/400V 1P3000A;AC400V 2P,3P3000A |
| Electrical Life(Times) | 4000 |
| Mechanical Life(Times) | 16000 |

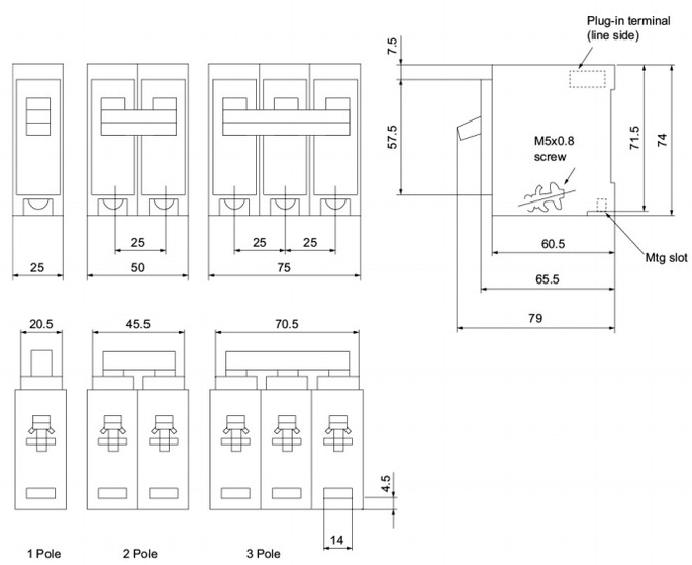

Installation Instructions
