BH Bolt on Circuit Breaker
Applications
BH series is applicable to branching circuit breakers,They are for power distribution boards,and products compatible for affixation to DIN rails are also available.
Widely used in guesthouses,block of flats,high buildings,squares,airportsrailway stations. plants and enterprises etc,in AC circuits 240V (single polelup to 415V(3 pole)50Hz for protection of overload short circuit and for circuit change-over in lighting system.Breaking capacity is 3KA. The items comply with IEC60898 standard.
Specification
| Type | BH |
| Number of Poles | 1P,2P,3P |
|
Rated current(A)at ambient temperature 40℃ |
6,10,15,20,25,30,40,50,60,70,80,100,125 |
| Rated Voltage(V) | AC230/400 |
| Breaking Capacity(A) | AC230/400V 1P 3000A;AC400V 2P,3P 3000A |
| Electrical Life (Times) | 4000 |
| Mechanical Life (Times) | 16000 |

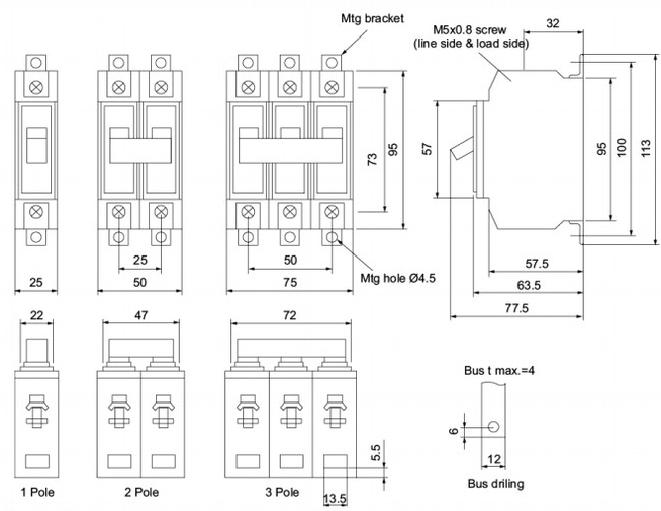

Installation Instructions
Note:Two mounting brackets are used for single-pole breakers.And four for two-pole and threepole breakers.
