2020 wholesale price Extension cord - Indicator Yuanky 230V 240V S7L Circuit Breaker Indicator LED Light Are Available In Four Colors – Hawai Detail:
Scope of application
Explain: The Modular Signal Lamp is applicable to circuit with rated voltage 230V~and frequency50/60Hz for visual indication and signaling, is mainly used to indicate the status of a(sub ) part of the installation, heater, motor, fan and pump etc.
Feature
■Low service duration, minimum power consumption;
■Compact design in modular size, easy installation;
■Rated voltage:230VAC,50/60Hz;
■Colour. red, green, yellow, blue;
■Connection terminal: Pillar terminal with clamp;
■Connection capacity: Rigid conductor 10mm2;
■Installation: On symmetrical DIN rail, Panel mounting;
■llumination type: llumination: LED, Max power:0.6W;
■Service duration:30,000 hours, llumination: Neon bulb, Max power:1.2W, Service duration:15,000 hours.
Selecting and order data
|

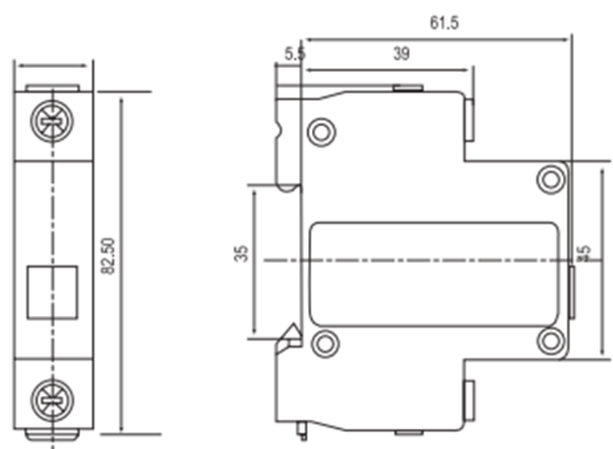

Overall and installation dimension

|
Standard
|
Confirming to IEC60947-5-1
|
|
Electric ratings
|
Up to 230VAC 50/60HZ
|
|
Rated insulation Voltage
|
500V
|
|
Protection grade
|
IP20
|
|
Rated operation current
|
20mA
|
|
Life
|
Incandescence lamp ≥1000h
|
|
Neon lamp ≥2000h
|
|
-5C+40C,average temperature in 24hours not exceed+35℃
|
|
Alient temperature
|
Not exceed 2000m
|
|
Mounting category
|
Ⅱ
|
Product detail pictures:
